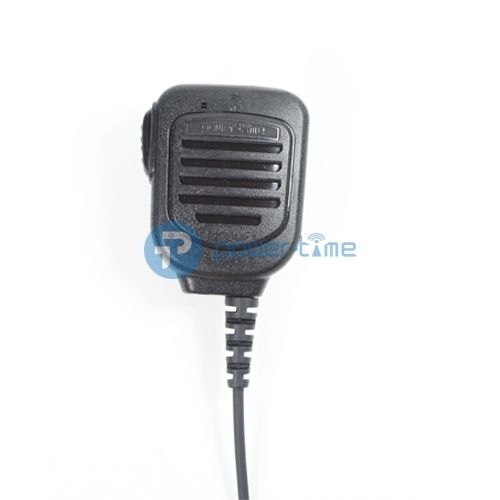

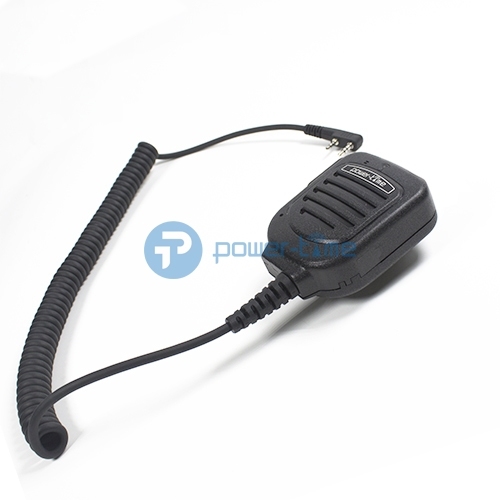

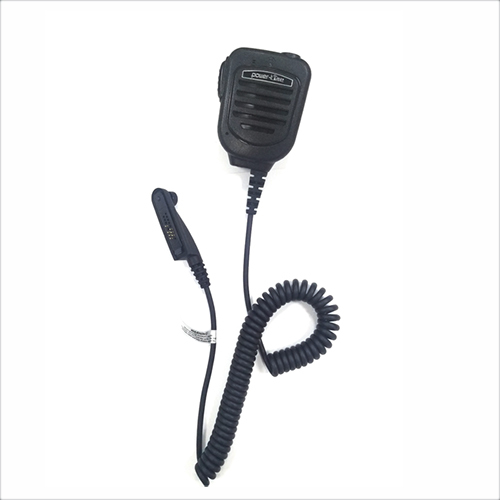

PTE-1315 IP67 Waterproof Speaker Microphone for Bendix King KNG-P150 / RELM KNG-15P Radios

No.PTE-1315 BK01
Rugged IP67 handheld speaker microphone with 3.5mm audio jack, designed for Bendix King KNG-P150 and RELM KNG-15P series radios.
  • Water-proof RSM for Bendix King BK two way radios KNG-P150 RELM KNG-15P series
  • Water-proof RSM for Bendix King BK two way radios KNG-P150 RELM KNG-15P series
  • Water-proof RSM for Bendix King BK two way radios KNG-P150 RELM KNG-15P series

Description



The PTE-1315 Speaker Microphone is purpose-built for Bendix King and RELM two-way radios, providing crystal-clear communication and rugged durability.

  • Perfect Compatibility: Specifically designed for Bendix King KNG-P150 and RELM KNG-15P series radios.

  • IP67 Waterproof Protection: Dust-tight and fully submersible, ideal for harsh outdoor and industrial use.

  • Audio Jack Support: Integrated 3.5mm audio jack for private listening with optional earpieces.

  • Heavy-Duty Design: Constructed with ABS+PC housing for impact resistance and long-lasting performance.

  • Reliable Cable: Coiled, anti-interference PU cable ensures stable signal transmission.

  • Temperature Range: Works from -20°C to +70°C, suitable for extreme weather conditions.

  • Ergonomic Grip: Comfortable to use during extended shifts in field operations.

Applications:
Perfect for public safety, emergency response, utilities, and industrial users who rely on Bendix King radios in mission-critical conditions.

Speaker Specification
Type Transducer: Moving coil dynamic speaker
Impedance 8Ω±15% @1500HZ
Sensitivity 96±3dB @1KHZ
Resonance frequency 450±100HZ
Frequency respond 100~4.5KHz
Rated input power 1mW
Maximum input power 10mW

Microphone Specification
Type Capacitance Mic
Impedance Max 2.2KΩ 1KHZ(RL=2.2KΩ)
Frequency 20-20KHZ
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.1-10V (DC)
Max Sound pressure Level 115dB @1KHz THD<1
Note: Specifications according to customer requirements, welcome to customize!
