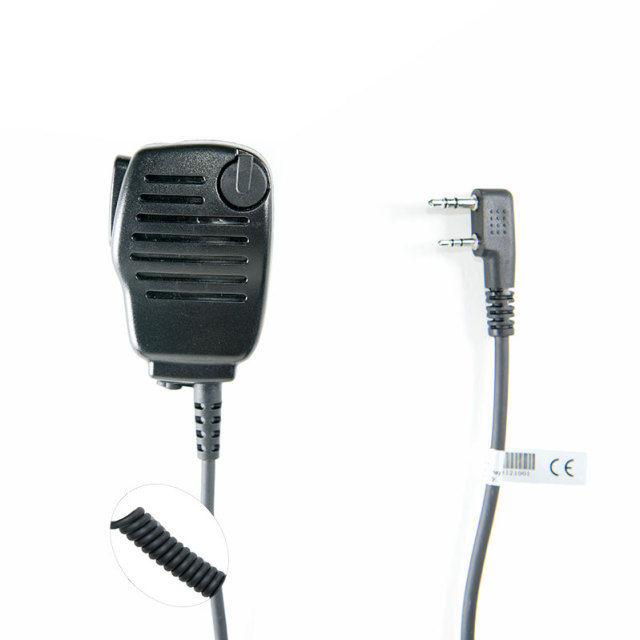

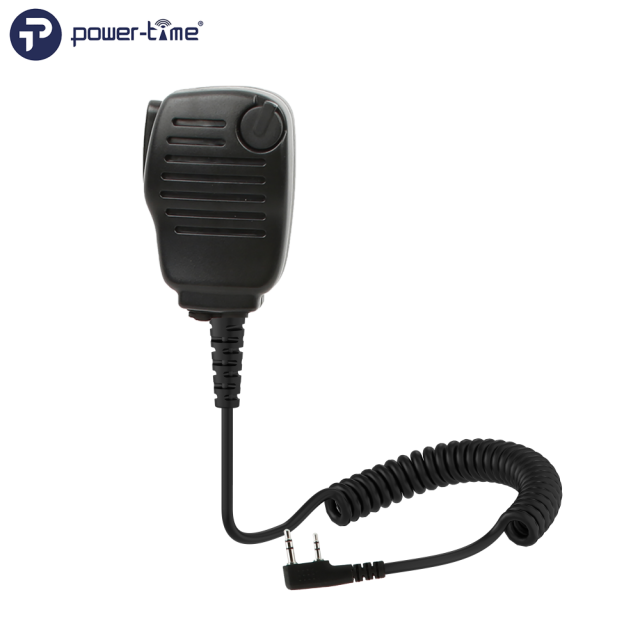

PTE-1302N Lightweight Remote Speaker Microphone with Volume Control

No.PTE-1302N
The PTE-1302NPTE-1302V remote speaker microphone with volume control, 3.5mm audio output, Kevlar PU cable, and 360° clip. Durable design for professional radio communication.
  • PTE-1302N Lightweight Remote Speaker Microphone with Volume Control
  • Adjustable volume light weight clear sound speaker microphone
  • PTE-1302N Lightweight Remote Speaker Microphone with Volume Control
  • PTE-1302N Lightweight Remote Speaker Microphone with Volume Control

Description

The PTE-1302N Lightweight Remote Speaker Microphone is an upgraded version of the PTE-1302, offering the same compact, durable design with an added volume control knob for a better user experience.

Constructed with a Kevlar-reinforced PU cable (4.2mm), this speaker microphone withstands extreme working environments ranging from -20°C to +70°C. Its high-quality dynamic speaker and condenser microphone ensure excellent audio clarity, while the 360° rotatable clip allows easy attachment in any position.

The integrated 3.5mm audio jack supports external earpieces for private communication, making it ideal for noisy or sensitive environments. For added flexibility, the volume control feature lets users adjust audio levels directly from the microphone, ensuring seamless operation in the field.

Like the PTE-1302, this model is packaged in a cost-effective PE bag and supports custom logo printing as well as various connector options for different radio models.

Perfect for security teams, construction sites, and event coordination, the PTE-1302V combines reliability with enhanced usability.


Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 8Ω±15% @1KHZ
Sensitivity 96±3dB @1KHZ
Resonance freq (F0)600HZ±20%
Frequency respond F0~9KHz
Rated input power 1W
Maximum input power 2W

Microphone Specification
Sensitivity Range -47±2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 50-1600Hz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L f-1K Hz THD<5%
