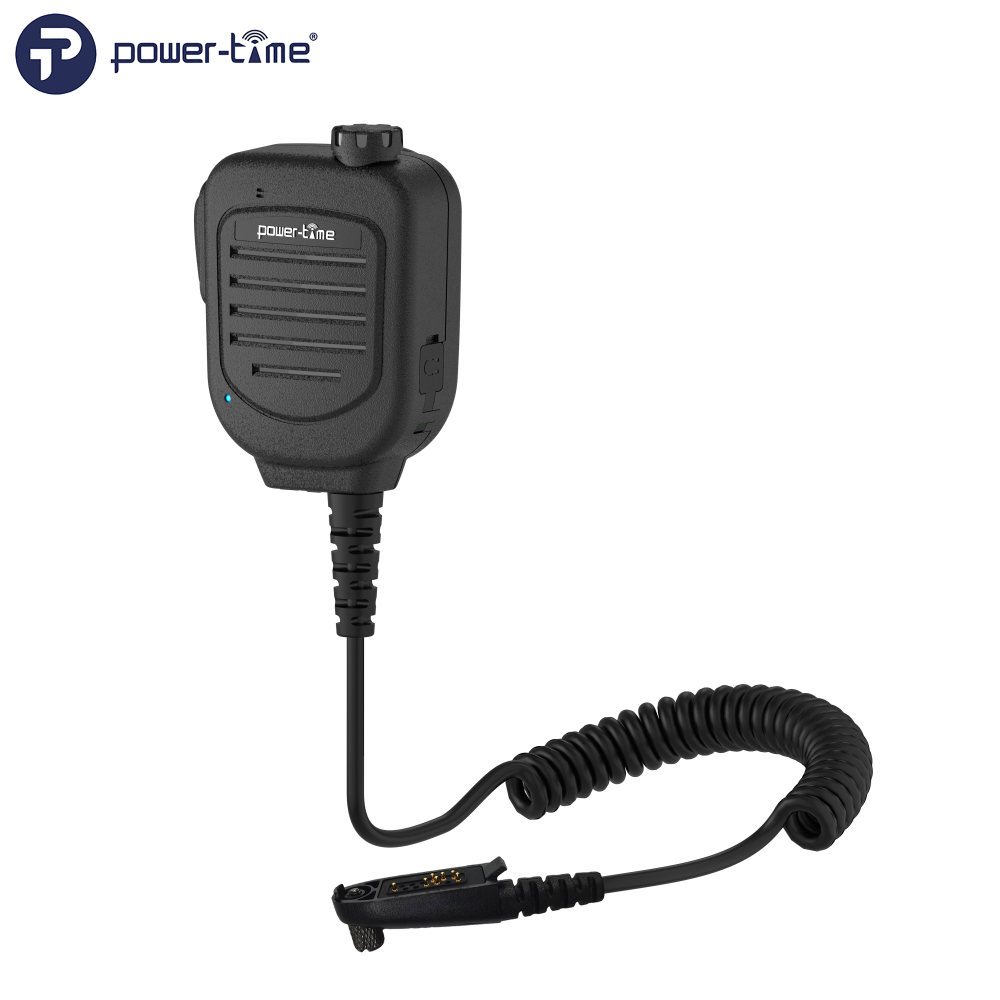

PTE-1314 Rugged Handheld Speaker Microphone with Built-in Battery for POC Radios

No.PTE-1314
Handheld speaker microphone with built-in rechargeable battery, delivering over 20 hours of operation and clear amplified audio for POC and two-way radios.
  • PTE-1314 Rugged Handheld Speaker Microphone with Built-in Battery for POC Radios

Description

The PTE-1314 Rugged Handheld Speaker Microphone is designed for Push-to-Talk Over Cellular (POC) radios and professional communication users requiring extended runtime and versatile features.

  • Built-in Battery: Integrated rechargeable battery delivers 20+ hours of continuous operation, eliminating the need for external power.

  • Convenient Charging: Equipped with a modern USB Type-C charging port for quick and easy recharging.

  • Loud & Clear Audio: Internal amplifier circuit ensures strong, clear sound even in noisy environments.

  • Dual Function Keys: Standard PTT key for radio use plus an extra button to answer phone calls on POC devices.

  • Rugged Build: Made from durable ABS+PC housing for impact resistance and long-lasting performance.

  • Ergonomic Design: Comfortable handheld grip for prolonged use.

  • Temperature Range: Works reliably in harsh conditions, from -20°C to +70°C.

Applications:
Perfect for public safety, logistics, transportation, and industrial environments where long-lasting power and multifunction capability are essential.

Speaker Specification
Type Transducer: Moving coil dynamic speaker
Impedance 8Ω±15% @1500HZ
Sensitivity 96±3dB @1KHZ
Resonance frequency 450±100HZ
Frequency respond 100~4.5KHz
Rated input power 1mW
Maximum input power 10mW
Microphone Specification
Type Capacitance Mic
Impedance Max 2.2KΩ 1KHZ(RL=2.2KΩ)
Frequency 20-20KHZ
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.1-10V (DC)
Max Sound Pressure Level 115dB @1KHz THD<1

Stay connected with the PTE-1314. Contact us today for product details, samples, or OEM solutions.
