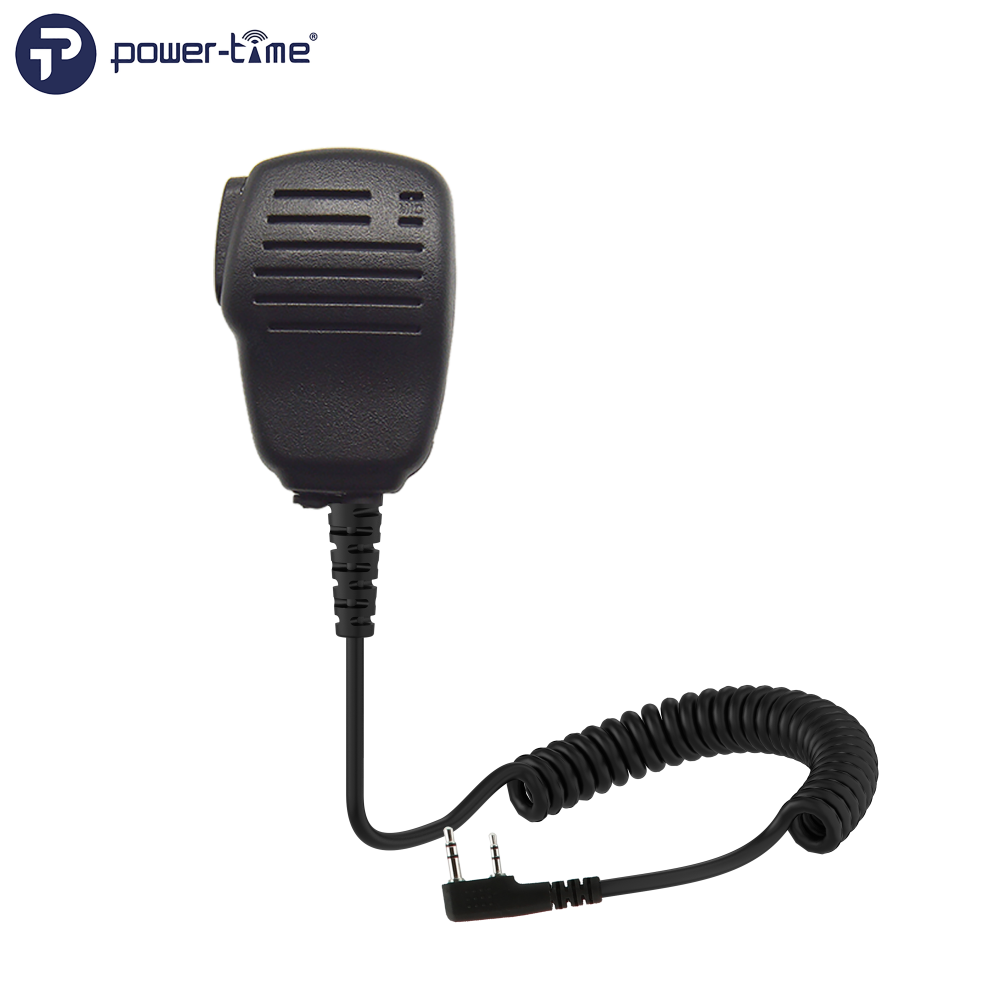

PTE-1302 Lightweight Remote Speaker Microphone with 3.5mm Audio Jack

No.PTE-1302

The PTE-1302 is a compact and affordable remote speaker microphone, featuring a 3.5mm audio output, Kevlar-reinforced PU cable, and 360° rotatable clip for versatile use.

  • PTE-1302 Lightweight Remote Speaker Microphone with 3.5mm Audio Jack
  • Light weight remote speaker microphone
  • speaker microphone for mobile radio
  • speaker microphone clip

Description

The PTE-1302 Lightweight Remote Speaker Microphone is designed for users who need reliable, clear communication in a compact and cost-effective form. Built with a 4.2mm Kevlar-reinforced PU cable, this microphone ensures durability and flexibility in challenging environments. It operates smoothly under extreme conditions, from -20°C to +70°C, making it ideal for outdoor and professional applications.

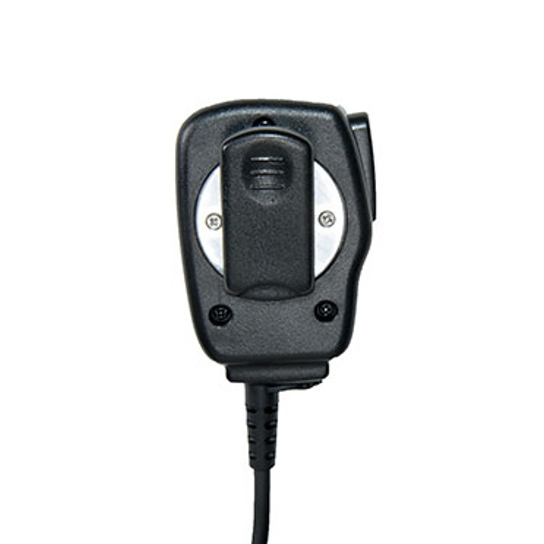

Equipped with a high-quality dynamic speaker and condenser microphone, the PTE-1302 delivers crisp, clear audio transmission. The 360° rotatable back clip provides convenient attachment to uniforms or belts, while the 3.5mm audio output allows connection with an earpiece for private listening.

To optimize cost-effectiveness, the microphone is packaged in a protective PE bag. For branding needs, we offer custom logo silk printing and a wide variety of connector options to fit different radio brands and models.

Whether for public safety, security, or industrial communication, the PTE-1302 offers dependable performance at a competitive price.


Speaker Specification

Type Transducer: Moving coil dynamic speaker
Impedance 8Ω±15% @1KHZ
Sensitivity 96±3dB @1KHZ
Resonance freq (F0)600HZ±20%
Frequency respond F0~9KHz
Rated input power 1W
Maximum input power 2W

Microphone Specification

Sensitivity Range -47±2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 50-1600Hz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound Pressure Level 115dB S.P.L f-1K Hz THD<5%
