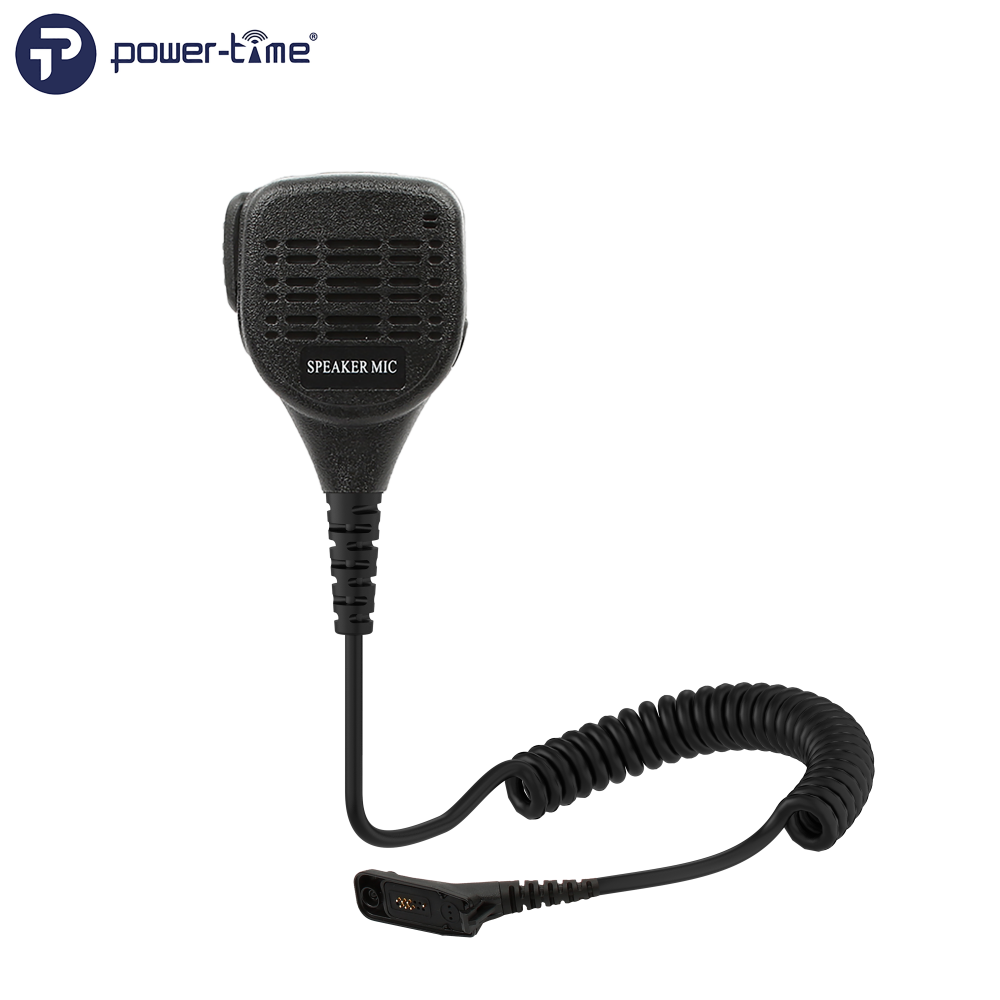

PTE-1309 IP55 Enhanced Waterproof Remote Speaker Microphone for Motorola Two-Way Radios

No.PTE-1309
Upgraded IP55-rated speaker microphone with improved waterproof performance, robust PU cable options, and wide radio compatibility.
  • PTE-1309 IP55 Enhanced Waterproof Remote Speaker Microphone for Motorola Two-Way Radios
  • IP55 waterproof high quality speaker microphone

Description

The PTE-1309 Remote Speaker Microphone is the upgraded version of the PTE-1308, designed for professionals requiring higher water resistance.

  • Enhanced Waterproofing: IP55 waterproof protection for more demanding environments such as construction, security, and outdoor operations.

  • Durable Cable Choices: 4.2mm PU cable with Kevlar® reinforcement or 5.5mm heavy-duty PU cable for extra ruggedness.

  • Wide Operating Range: Tested for extreme conditions, from -20°C cold to +70°C heat.

  • Flexible Packaging Options: Retail box or PE bag for cost-efficient shipping.

  • OEM Support: Custom branding and connector types available for different radio models.

  • Audio Accessory Port: 3.5mm jack for optional earpiece connection, ensuring clear and private communications.

  • Universal Compatibility: Available for Motorola and other professional two-way radios.


Speaker Specification
Size Ø45MM
Impedance 8Ω±15% @1KHZ
Sensitivity 92±3dB/1Watt.0.5Meter
Frequency respond (F0)~20KHZ
Rated input power 1.0W
Maximum input power 1.5W

Microphone Specification
Size Ø9.7×6.5MM
Sensitivity -56 ± 2dB
Impedance 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 100HZ-10KHz
Operation Voltage Range 1.0V-10V (DC)

Choose the PTE-1309 for enhanced waterproof protection. Request a quote or product sample today.
